Our Products

Complete Automation Portfolio

From collaborative palletizers to end-of-line auxiliary equipment — integrated solutions for every stage of your packaging line.

Flagship

Robotic Palletizing

Four platform families covering 1kg–290kg payload, from high-speed sorting to heavy-duty column palletizing.

FW-COB10-30 · Collaborative · 10–30kg
FW-COB30/50/70 · Higher Payload · Up to 70kg
FW-CPR70-290 · Column Type · Up to 290kg
FW-SR001 · Spider Robot · 160 pcs/min

Robot Welding

Advanced robotic welding solutions for MIG, TIG, and laser welding applications. Precision-engineered for consistent weld quality.

Coming Soon — Specs available upon request
MIG / TIG / Laser welding
Multi-axis robotic arms
Custom fixture & positioner integration

Auto Loading & Unloading

Automated material handling systems for CNC machines, production lines, and logistics integration. Maximize uptime and throughput.

Coming Soon — Specs available upon request
CNC machine tending
Gantry & cartesian systems
Conveyor integration

End-of-Line Equipment

Complete auxiliary equipment for carton erection, sealing, strapping, and pallet wrapping — the final mile of your packaging line.

FW-KX740 Carton Erector · 6–12 pcs/min
FW-ZZYJ50 Carton Sealer · 8–20 pcs/min
FW-MH201 Strapping Machine · 2.0s/cycle
FW-200 Stretch Wrapper · Up to 2000kg

Custom EOAT

Tailored End-of-Arm Tooling designed for your specific product geometry, weight, and production requirements.

Bag Gripper & Multi-Bag Gripper
Carton Clamping Gripper
Vacuum Suction & Sponge/Foam Gripper
Pin-Type Bag Gripper

Technical Specifications

Product Details

Explore detailed specifications for our product families.

Robotic Palletizing Platform Overview

Model	Type	Payload	Speed	Reach
FW-COB10-30	Collaborative Palletizer	10 – 30 kg	8 – 12 cycles/min	1,500 mm
FW-COB30	Higher-Payload Collaborative	30 kg	8 – 12 picks/min	1,900 mm
FW-COB50	Higher-Payload Collaborative	50 kg	8 – 12 picks/min	1,900 mm
FW-COB70	Higher-Payload Collaborative	70 kg	8 – 12 picks/min	1,900 mm
FW-CPR70	Column Palletizer	70 kg	5 – 9 cycles/min	1,950 mm
FW-CPR130	Column Palletizer	130 kg	5 – 9 cycles/min	2,100 mm
FW-CPR180	Column Palletizer	180 kg	5 – 9 cycles/min	2,200 mm
FW-CPR290	Column Palletizer	290 kg	5 – 9 cycles/min	2,300 mm
FW-SR001	Spider Robot Packing	≤ 1 kg	80 – 160 pcs/min	—

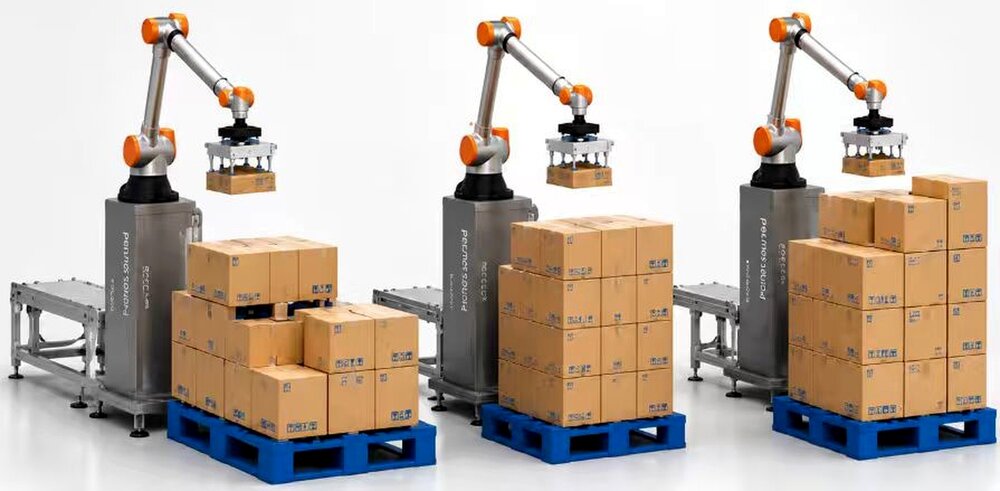

FW-COB Series — Collaborative

Safe human-robot collaboration
Quick changeover between SKUs
Compact footprint, easy integration
Ideal for food, pharma, consumer goods

FW-CPR Series — Column

Heavy-duty palletizing up to 290kg
High stacking capability
Built for building materials, chemicals
Robust column design for stability

FW-SR001 — Spider Robot

Ultra-high-speed: 160 pcs/min
Precision sorting & packing
Small-item handling
Perfect for e-commerce, FMCG

End-of-Line Auxiliary Equipment

Model	Function	Speed / Capacity	Key Feature

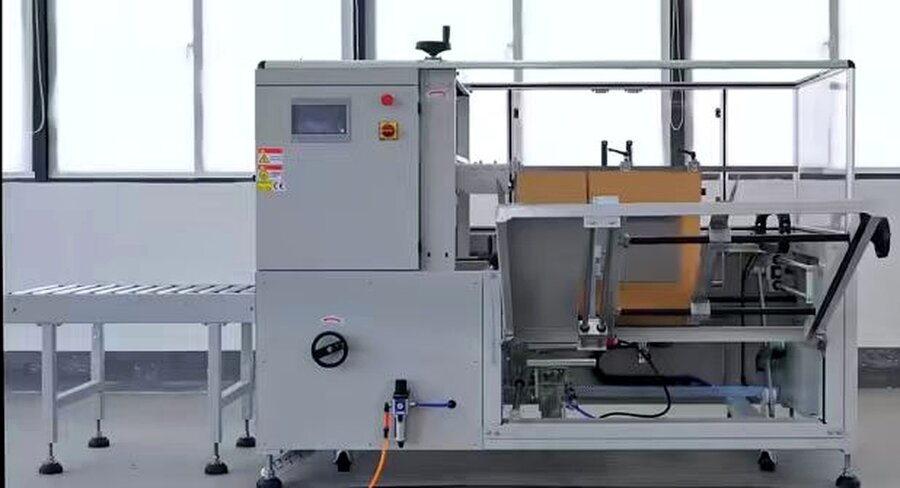

FW-KX740	Automatic Carton Erector	6 – 12 cartons/min	Quick size adjustment, auto magazine
FW-ZZYJ50	Automatic Carton Sealing Machine	8 – 20 cartons/min	Top & bottom tape, self-adjusting
FW-MH201	Automatic Strapping Machine	2.0 – 3.0 s/strap	Low & high-tension modes
FW-200	Pallet Stretch Wrapper	Up to 2,000 kg/pallet	Pre-stretch film, auto turntable
CLTU Series	Cross Lift Transfer Unit	50 – 100 kg, 90°	Seamless line routing & merging

Custom End-of-Arm Tooling (EOAT)

Gripper Type	Function	Suitable Products	Key Feature
Bag Gripper	Single bag handling	PP/PE bags, woven bags	Secure grip, minimal damage
Multi-Bag Gripper	Multi-bag simultaneous pick	Multiple bags per cycle	Higher throughput per cycle
Carton Clamping Gripper	Carton case handling	Corrugated cartons, shrink-wrapped	Adjustable width, gentle clamping

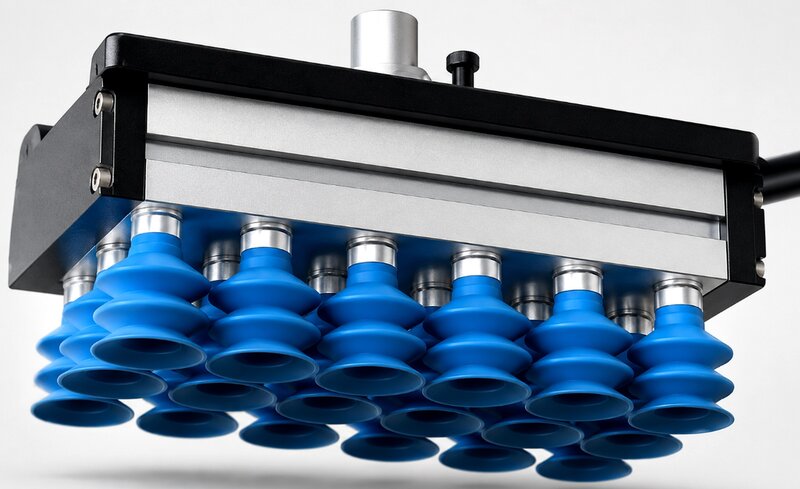

Vacuum Suction Gripper	Flat/smooth surface pick	Boxes, trays, sheets	No mechanical contact, fast release
Sponge/Foam Vacuum Gripper	Irregular surface handling	Bottles, curved packages	Conforms to product shape
Pin-Type Bag Gripper	Woven bag stacking	Heavy woven bags, bulk materials	Puncture-based secure hold

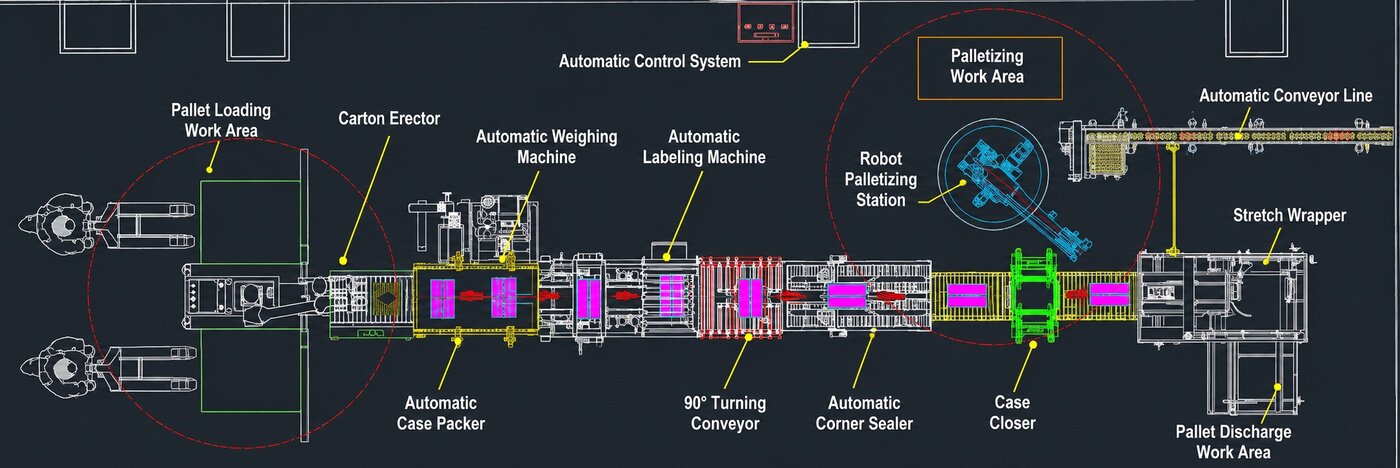

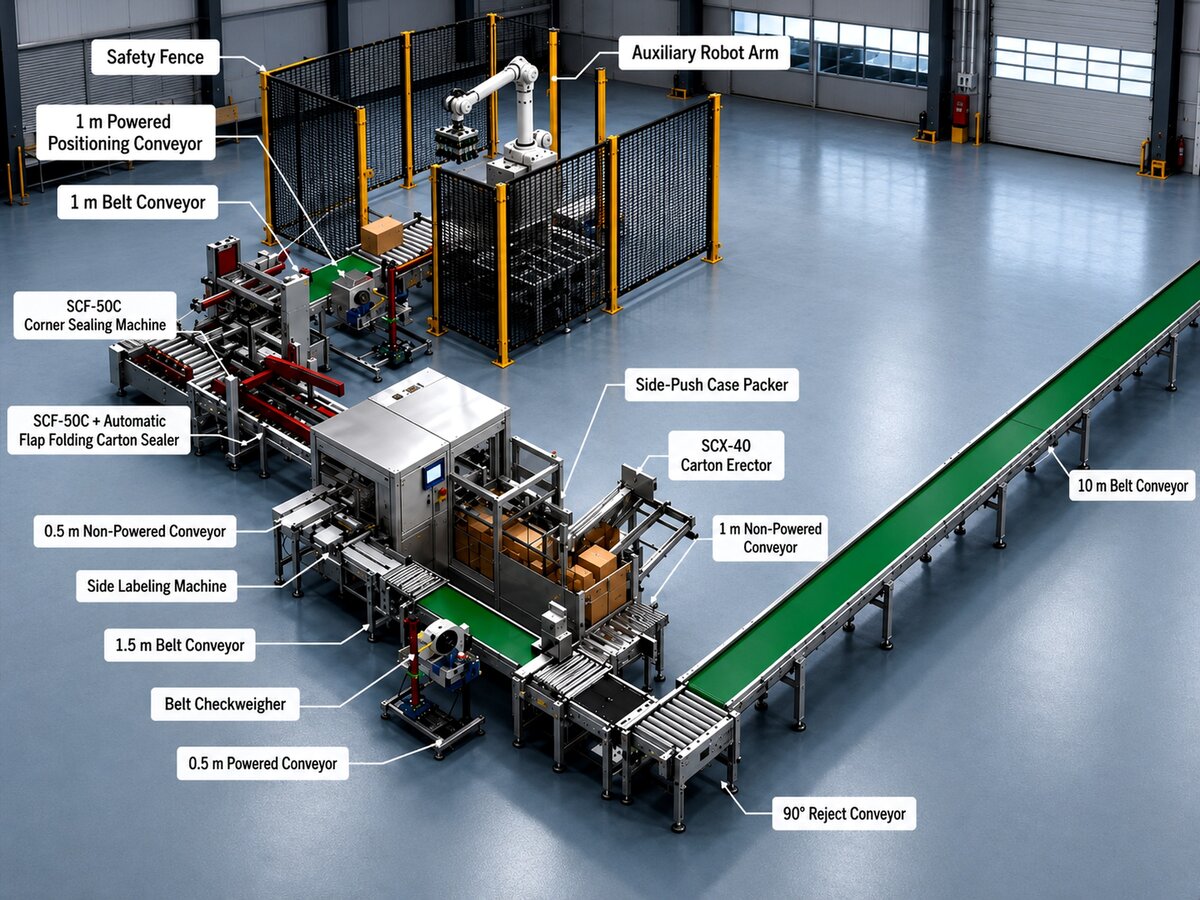

Integrated Solutions

One Integrated Line

From product infeed to finished pallet — we design and deliver the complete automated end-of-line, fully integrated and ready to run.

Infeed

Product conveyance

Carton Erecting

Auto box forming

Packing

Product loading

Sealing

Carton sealing

Strapping

Band strapping

Palletizing

Robotic stacking

Wrapping

Stretch wrapping

Flexible Configuration

Modular design allows each station to work independently or as part of a fully integrated line.

High Efficiency

Optimized cycle times and synchronized operations maximize your production throughput.

Scalable Design

Start with core stations and expand as your capacity requirements grow.

Turnkey Delivery

Single-source responsibility from design through installation and commissioning.

Case Study

Proven in the Field

Real-world results from our automated palletizing deployment in Southeast Asia.

Automated Palletizing Line — Medical Manufacturer

Thailand · Medical Manufacturing Industry

FW-COB30FW-COB50 Vacuum EOATIntegrated Line Medical Grade

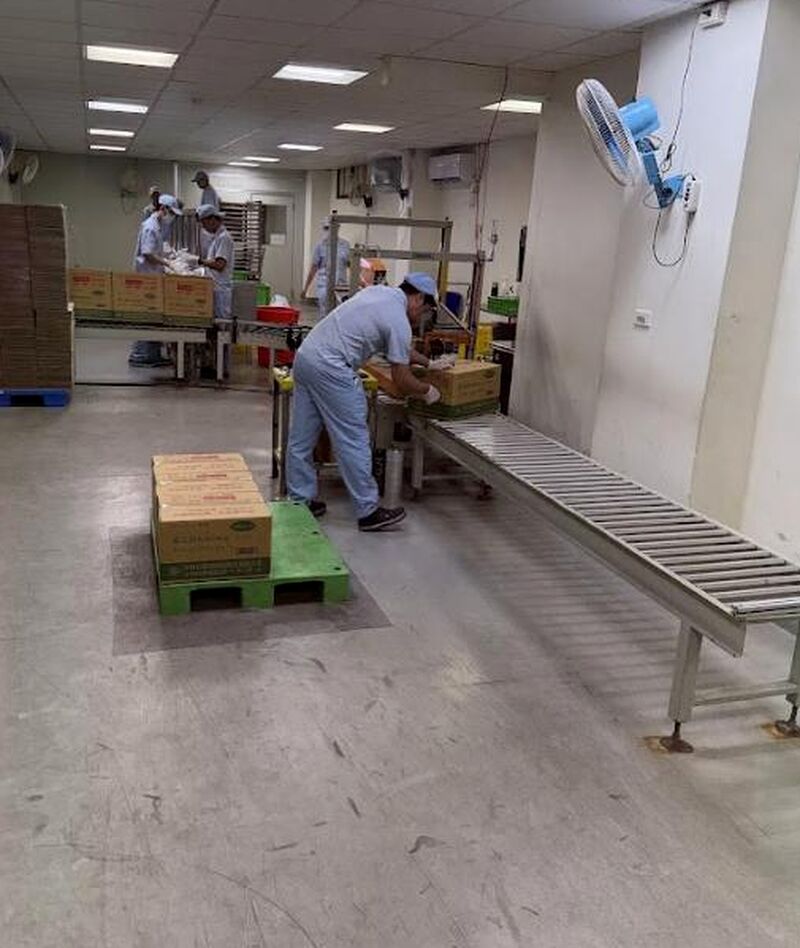

Before

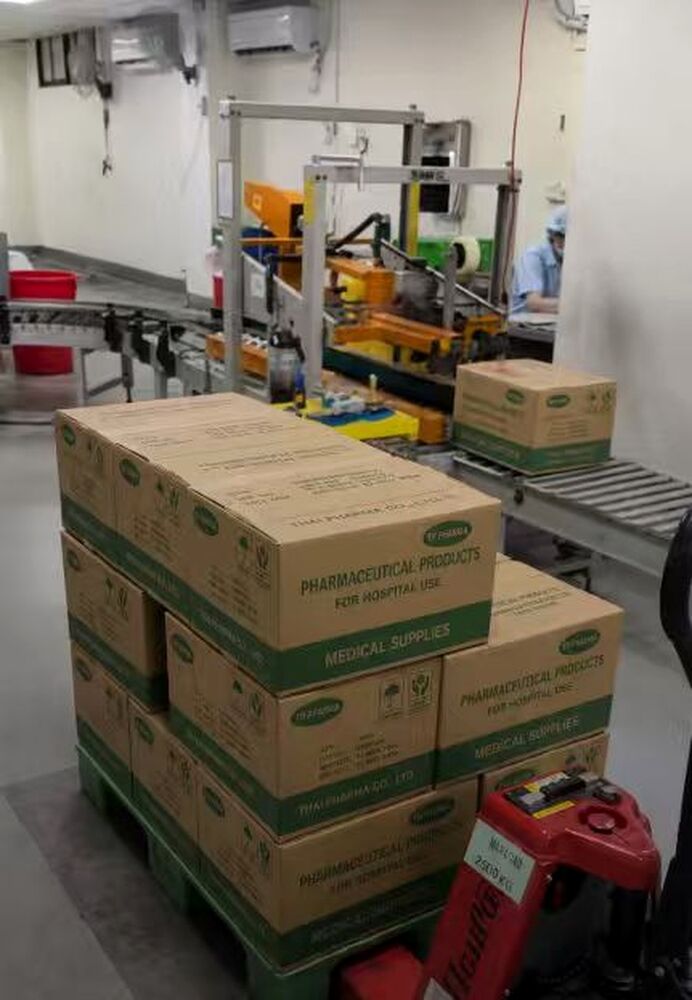

After

2–6

Packages / Min

2,150mm

Stacking Height

Stack Layers

24/7

Continuous Operation

Project Overview

Customer: Confidential Medical Manufacturer, Thailand
Product: Plastic & glass bottles packed in cartons
Throughput: 2–6 packages per minute
Stacking: 2,150mm height, 6 layers per pallet
Equipment: FW-COB30 + FW-COB50 collaborative palletizers

Results & Benefits

Fully automated repetitive palletizing operation
Significant reduction in manual handling & injury risk
Flexible SKU switching with quick tooling changeover
Vacuum EOAT ensures secure bottle handling
Integrated line — single point of accountability

About Forworld

Engineering Excellence, Globally Delivered

Independent R&D, production, and global trade — all under one roof.

~40,000

m² Production Base (Zhongshan)

~300

Production & Processing Devices

~30

Professional R&D Team Members

Facilities: Zhongshan + Dongguan

Your Trusted Automation Partner

Dongguan Forworld Technology Co., Ltd. is a professional manufacturer specializing in robotic palletizing and end-of-line automation. With our modern production base in Zhongshan and sales center in Dongguan, we combine independent R&D capabilities with rigorous manufacturing standards.

We serve customers across Southeast Asia, Australia, Europe, and Turkey — delivering not just machines, but complete integrated solutions backed by dedicated service support.

Independent R&D and intellectual property
In-house manufacturing and quality control
Turnkey project delivery worldwide
Dedicated after-sales service & technical support
Custom EOAT design and engineering

Global Market Presence

Serving industrial customers across key markets worldwide

Southeast Asia Australia Europe Turkey Thailand More Regions

Our Process

From Concept to Commissioning

A proven 8-step methodology that ensures every project is delivered on time, on spec, and on budget.

Requirement Analysis

Understanding your products, throughput, and facility constraints

Concept & Layout

Initial system design and line layout proposal

Technical Proposal

Detailed specifications, timeline, and investment overview

Engineering Design

3D modeling, simulations, and design validation

Manufacturing & Assembly

Precision manufacturing with rigorous quality checks

System Testing

Full system integration test and acceptance at our facility

Installation & Commissioning

On-site installation, calibration, and operator training

Service Support

Ongoing maintenance, spare parts, and technical support

Get in Touch

Start Your Automation Project

Tell us about your application, and our engineers will design a tailored solution for you.

Let's Discuss Your Needs

Whether you need a single palletizing robot or a complete end-of-line system, our team is ready to help. Reach out today for a free consultation and custom proposal.
